Exposing OTel Collector in Kubernetes with Gateway API & mTLS

By Vipin Vijaykumar (SAP SE) |

The goal of this blog post is to demonstrate how you can expose an OpenTelemetry (OTel) Collector running inside Kubernetes to the outside world securely, using the Kubernetes Gateway API and mutual TLS (mTLS) for authentication and encryption.

As observability becomes increasingly critical in modern distributed systems, centralizing telemetry data via OTel Collectors deployed in one or many Kubernetes clusters is common practice. Often, services or agents running outside your Kubernetes cluster need to send data to these Collectors. Exposing internal services requires careful consideration of security and standardization. This is where the Kubernetes Gateway API and mTLS shine.

Typically this kind of a setup is useful when you have applications or workloads that are external to the cluster, and you need to collect their telemetry data. Some examples:

  • Hybrid Cloud/On-Premises Environments: Applications or servers running in a traditional data center, or a different cloud or external to your Kubernetes cluster need to forward their metrics, traces, or logs to your central observability solution.
  • Multi-Cluster Telemetry Aggregation: In a setup that might run on multiple Kubernetes clusters, you might designate one cluster to host the primary OTel Collector deployment. Collectors in other “spoke” clusters would act as clients, exporting data to this central collector via its external endpoint. For example, in a multi-cluster service mesh setup, workloads may require tail sampling to be performed centrally. In this case, a central collector configured with the tail sampling processor and exposed via a Gateway aggregates spans from all clusters to make sampling decisions.
  • Edge Computing / IoT: Devices deployed at the edge often need to send operational data back to a central platform.
  • Serverless Functions / PaaS: Applications running on serverless platforms (like AWS Lambda, Google Cloud Functions) or Platform-as-a-Service offerings outside your cluster may need to export OTLP data.
  • External Monitoring Agents: Third-party agents or locally running development instances needing to connect to a shared collector within the cluster.
  • Client-Side Monitoring: Telemetry coming in from external clients like browsers and mobile applications. While mTLS may not be used for exporting telemetry from browsers, the collectors must ultimately be made available.

Prerequisites

Before we start, ensure you have the following:

  1. A Kubernetes Cluster: Minikube, Kind, Docker Desktop, Gardener or a cloud provider’s managed Kubernetes service will work.
  2. kubectl: Configured to interact with your cluster.
  3. helm: Configured to install Helm charts.
  4. A Gateway API Implementation: We’ll use Istio in this example. Other implementations like Contour, NGINX Gateway Fabric, etc. would also work with potentially minor configuration adjustments.
  5. openssl: The OpenSSL CLI for generating certificates.

What is the Kubernetes Gateway API?

The Kubernetes Gateway API is an evolution of the older Ingress API. It provides a more expressive, role-oriented, and flexible way to manage inbound traffic to your cluster. The GAMMA initiative defines the Gateway API implementation. It was introduced for the following reasons:

  • Limitations of Ingress: The Ingress API, while useful, became limiting. It lacked standardization across implementations and also limited routing capabilities that varied widely across different implementations.
  • Role Separation: Gateway API separates concerns:
    • GatewayClass: Defines a type of load balancer (e.g., Istio, GKE LB). Managed by Infrastructure Admins.
    • Gateway: Represents an instance of a load balancer requesting a specific GatewayClass. Defines listeners (ports, protocols, TLS). Managed by Cluster Operators. They can be shared across namespaces as well.
    • HTTPRoute, GRPCRoute, TCPRoute, TLSRoute, etc.: Define application-level routing rules, attaching to a Gateway. Managed by Application Developers/Owners.
  • Portability: Standardized API definition aims for greater portability across different underlying gateway/service mesh implementations.
  • Expressiveness: Natively supports advanced features like header manipulation, traffic splitting, mTLS configuration, gRPC routing, and more.

In essence, Gateway API offers a more robust and standardized model for managing north-south traffic compared to the traditional Ingress API.

mTLS - A brief introduction

Mutual TLS (mTLS) extends standard TLS by requiring both the client and server to present and validate certificates for mutual authentication.

Standard TLS (like HTTPS on websites) verifies the server’s identity to the client. Mutual TLS (mTLS) goes a step further:

  • The client verifies the server’s identity (using the server’s certificate).
  • The server also verifies the client’s identity (using the client’s certificate).

Mutual TLS is important because it provides strong authentication, ensures end-to-end encryption, and aligns with Zero Trust security principles:

  • Ensures only trusted clients (those possessing a valid certificate signed by trusted Certificate Authority (CA)) can connect to your exposed service.

  • All communication between the authenticated client and the server (such as a Gateway) is encrypted.

  • It supports a Zero Trust model by requiring verification from both parties, never assuming trust by default.

The Scenario

Here are the steps we’ll follow to expose an OTel Collector deployment outside the cluster.

  • Deploy an OTel Collector inside Kubernetes configured with a simple OTLP/gRPC receiver.
  • Generate a self-signed Root CA, a server certificate (for the Gateway), and a client certificate (for the external client).
  • Configure a Kubernetes Gateway resource to listen on a specific port, terminate TLS, and require client certificates (mTLS).
  • Configure a GRPCRoute to route incoming gRPC traffic from the Gateway to the internal OTel Collector service.
  • Configure an external client (another OTel Collector) to export data via OTLP/gRPC, using the client certificate and trusting the Root CA.

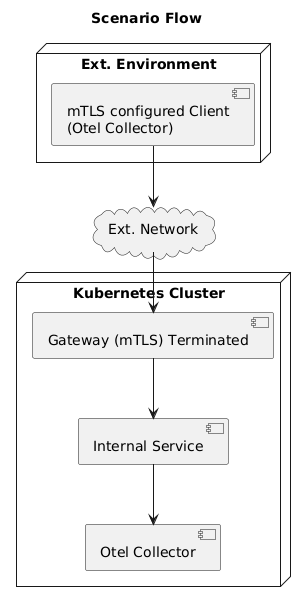

Scenario Diagram

Setup

Step 1: Install Gateway API CRD.

By default, the Gateway APIs do not come installed in the Kubernetes Cluster. At the time of writing this blog, the latest version is v1.2. Install the Gateway API CRDs if not present:

kubectl get crd gateways.gateway.networking.k8s.io &> /dev/null || \
kubectl apply -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.2.1/standard-install.yaml

#To support GRPCRoute as of now. Would not be required once GRPCRoute CRD becomes GA.
kubectl kustomize "github.com/kubernetes-sigs/gateway-api/config/crd/experimental?ref=v1.2.0" | kubectl apply -f -

Step 2: Generate Self Signed Certificates

In order to setup mTLS between the client and the server, we need a set of certificates. For this demo scenario, we’ll be using self-signed certificate. We will be using the same CA for signing both clients and server in this demo. We’ll use openssl to create our certificates. Please refer to the openssl documentation for configuration details.

# Variables (adjust domain/names as needed)
export ROOT_CA_SUBJ="/CN=MyDemoRootCA"
# Use a relevant CN/SAN for the server/gateway. If clients connect via IP, include it.
# For DNS, use the hostname clients will use (e.g., otel.example.com)
export SERVER_HOSTNAME="otel-gateway.example.com"
export SERVER_SUBJ="/CN=${SERVER_HOSTNAME}"
export CLIENT_SUBJ="/CN=external-otel-client"

# 1. Create Root CA certificate and key
openssl req -x509 -sha256 -nodes -days 365 -newkey rsa:2048 -subj "${ROOT_CA_SUBJ}" -keyout rootCA.key -out rootCA.crt

# 2. Create Server CSR & sign with Root CA
openssl req -newkey rsa:4096 -nodes -keyout server.key -out server.csr -subj "${SERVER_SUBJ}" \
  -addext "subjectAltName = DNS:${SERVER_HOSTNAME}" # Add SAN for hostname validation

openssl x509 -req -in server.csr -CA rootCA.crt -CAkey rootCA.key -CAcreateserial -out server.crt -days 365 -sha256 \
  -extfile <(printf "subjectAltName=DNS:${SERVER_HOSTNAME}") # Ensure SAN is in the final cert

# 3. Create Client CSR and sign with Root CA
openssl req -newkey rsa:4096 -nodes -keyout client.key -out client.csr -subj "${CLIENT_SUBJ}"

openssl x509 -req -in client.csr -CA rootCA.crt -CAkey rootCA.key -CAcreateserial -out client.crt -days 365 -sha256

Step 3: Create otel-collector namespace

We will deploy our OTel Collector setup in the given namespace. Further on, depending on the Gateway/service mesh implementation you use, you may configure the namespace accordingly. For example, with Istio, we can create the namespace with istio-injection:enabled in order for Istio to automatically work with the deployed workloads in the namespace.

namespace.yaml:

# OpenTelemetry Collector Namespace
---
apiVersion: v1
kind: Namespace
metadata:
  name: otel-collector
  labels:
    istio-injection: enabled #Relavent only if you are using Istio.

Apply this configuration:

kubectl apply -f namespace.yaml

Step 4: Deploying the OTel Collector (Server)

Let’s create a simple OTel Collector deployment and service. In the given configuration, the OTel collector will print the incoming telemetry data. This configuration will change according to your use cases.

otel-collector-server.yaml:

apiVersion: v1
kind: ConfigMap
metadata:
  name: otel-collector-conf
  namespace: otel-collector # Deploy collector in otel-collector namespace
data:
  config.yaml: |
    receivers:
      otlp:
        protocols:
          grpc:
            # Note: No TLS config here. TLS terminates at the Gateway.
            endpoint: 0.0.0.0:4317

    processors:
      batch:

    exporters:
      # For demo purposes, log to stdout
      debug:

    service:
      pipelines:
        traces:
          receivers: [otlp]
          processors: [batch]
          exporters: [debug]
        metrics:
          receivers: [otlp]
          processors: [batch]
          exporters: [debug]
        logs:
          receivers: [otlp]
          processors: [batch]
          exporters: [debug]
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: otel-collector-server
  namespace: otel-collector # Deploy collector in otel-collector namespace
spec:
  replicas: 1
  selector:
    matchLabels:
      app: otel-collector-server
  template:
    metadata:
      labels:
        app: otel-collector-server
    spec:
      containers:
        - name: otel-collector
          # Use a specific, recent version tag in production
          image: otel/opentelemetry-collector:latest
          ports:
            - containerPort: 4317 # OTLP gRPC
              name: otlp-grpc
          volumeMounts:
            - name: otel-collector-config-vol
              mountPath: /etc/otelcol
      volumes:
        - name: otel-collector-config-vol
          configMap:
            name: otel-collector-conf
---
apiVersion: v1
kind: Service
metadata:
  name: otel-collector-server-svc
  namespace: otel-collector
spec:
  selector:
    app: otel-collector-server
  ports:
    - name: grpc
      protocol: TCP
      port: 4317
      targetPort: 4317

Apply this configuration:

kubectl apply -f otel-collector-server.yaml

Step 5: Storing Certificates as Kubernetes Secrets

The Gateway needs access to the server certificate/key and the CA certificate to validate clients.

Create a secret with the server certificate, key. We will also store the ca certificate used to sign clients In this demo, for ease, we place it in the otel-collector namespace

kubectl create -n otel-collector secret generic otel-gateway-server-cert --from-file=tls.crt=server.crt --from-file=tls.key=server.key --from-file=ca.crt=rootCA.crt

Step 6: Configuring the Kubernetes Gateway API Resources

We need two resources: Gateway and GRPCRoute. For simplicity, we keep the resources in the same otel-collector namespace in this demo. This would change depending on your deployment setup.

otel-gateway-resources.yaml:

apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: otel-gateway
  namespace: otel-collector
spec:
  gatewayClassName: istio
  listeners:
    - name: otlp-grpc-mtls
      port: 4317
      protocol: HTTPS
      hostname: 'otel-gateway.example.com'
      tls:
        mode: Terminate
        certificateRefs:
          - group: '' # Core API group for Secrets
            kind: Secret
            name: otel-gateway-server-cert # The certificates that were uploaded as secrets in the provious step.
        options:
          # This structure might vary  depending on the implementation of your Gateway/Service Mesh
          # Please refer  documentation of the implementation installed.
          # For Istio, we set tls termination mode here
          gateway.istio.io/tls-terminate-mode: MUTUAL
---
# GRPCRoute is generally preferred for OTLP/gRPC
# Ensure GRPCRoute CRD (v1alpha2 or v1) is installed
apiVersion: gateway.networking.k8s.io/v1
kind: GRPCRoute
metadata:
  name: otel-collector-grpcroute
  # Namespace where the backend service resides
  namespace: otel-collector
spec:
  # Link this route to our Gateway in the istio-system namespace
  parentRefs:
    - name: otel-gateway
      namespace: otel-collector # Namespace of the Gateway resource
      sectionName: otlp-grpc-mtls # Attach to the specific listener by name
  # Define routing rules for gRPC traffic
  rules:
    - backendRefs:
        - name: otel-collector-server-svc # Name of your internal OTel service
          namespace: otel-collector # Namespace of the backend service
          port: 4317 # Target port on the service

  • In the Gateway CRD, we configure the gatewayclass and listeners. In this case we configure one listener with the necessary port and hostname. We also configure tls which gets terminated here. We use the certificates uploaded as secrets. The options block is used to configure implementation specific parameters if any.

  • In the GRPCRoute, we choose a gateway and the specific listener. We also configure the backend to which the route forwards the requests. In this case, to the otel-collector-server-svc.

Apply the Gateway configuration:

kubectl apply -f otel-gateway.yaml

At this point, the Istio (or other) Gateway should be configured to listen on port 4317 (usually exposed via a LoadBalancer Service), require mTLS using the specified server certificate and client CA, and route valid gRPC traffic to the otel-collector-server-svc.

To get details of the Gateway, you can run the following:

# To get the Gateway hostname/IP
kubectl -n otel-collector get gateway otel-gateway -o jsonpath='{.status.addresses[0].value}'

# To get the port
kubectl -n otel-collector get gtw otel-gateway -o jsonpath='{.spec.listeners[?(@.name=="otlp-grpc-mtls")].port}'

You can also see the Kubernetes service created for your Gateway.

kubectl -n otel-collector get svc

Step 7: Configuring the External OTel Collector (Client)

To test the setup, configure an OTel Collector outside the cluster to send data to the Gateway’s external endpoint using mTLS.

For this demo, the client (OTel Collector) is run locally with Docker.

The following example otel-client-config.yaml is a simple configuration for scraping CPU and memory metrics and sending them to the server:

receivers:
  # Example: Receiver generating some data, e.g., host metrics
  hostmetrics:
    collection_interval: 10s
    scrapers:
      cpu:
      memory:
      # Add other scrapers as needed

processors:
  batch:

exporters:
  otlp/grpc:
    # IMPORTANT: Point to the Gateway's external IP/hostname and port
    # Replace <GATEWAY_EXTERNAL_IP_OR_HOSTNAME> with the actual address
    # It should match the hostname/SAN in the server certificate if using hostname
    # Use the hostname 'otel-gateway.example.com' if you have DNS configured at the gateway.
    endpoint: <GATEWAY_EXTERNAL_IP_OR_HOSTNAME>:4317

    tls:
      # We MUST enable TLS configuration for the client for mTLS
      insecure: false # Ensure server certificate is validated against the CA
      # Path to the CA certificate file to verify the server
      ca_file: /etc/cert/rootCA.crt
      # Path to the client's certificate file
      cert_file: /etc/cert/client.crt
      # Path to the client's private key file
      key_file: /etc/cert/client.key
      # Optional but recommended: Specify the server name for validation
      # Must match the CN or SAN in the server certificate (server.crt)
      # This is required if DNS is not configured at the Gateway and endpoint does not match the Gateway Hostname
      server_name_override: otel-gateway.example.com
service:
  pipelines:
    # Example sending host metrics
    metrics:
      receivers: [hostmetrics]
      processors: [batch]
      exporters: [otlp/grpc]
    # Add additional traces/logs pipelines if the client generates them

To run the client:

  1. Replace <GATEWAY_EXTERNAL_IP_OR_HOSTNAME> with the actual external IP address or DNS name of your Istio Gateway LoadBalancer service. If using the hostname (otel-gateway.example.com), ensure your client machine can resolve this hostname to the correct IP (e.g., via /etc/hosts for testing, or actual DNS).

  2. Use the server_name_override if the endpoint is different from the SAN/CN values in the server certificate.

  3. Place the generated rootCA.crt, client.crt, and client.key files in a directory accessible to the client collector. In this demo, we keep it in certs folder.

  4. Run the client collector (adjust paths and image tag as needed):

    # Running command assuming certificates and config are in the current directory.

docker run --rm -v $(pwd)/certs:/etc/cert/ \
           -v $(pwd)/otel-client-config.yaml:/etc/otelcol-contrib/config.yaml \
           otel/opentelemetry-collector-contrib:0.119.0

We are running a container of opentelemetry-collector-contrib by mounting the otel-client-config.yaml and the certs folder that contains the certificates.

Step 8: Testing the Connection

  1. Check Server Logs: Look at the logs of the otel-collector-server pod inside Kubernetes. If the debug exporter is configured, you should see entries indicating it’s receiving data batches.

    kubectl logs -n otel-collector -l app=otel-collector-server -f

  2. Check Client Logs: Look at the logs of the external client collector (e.g., the Docker container output). You should see messages like Everything is ready. Begin running and processing data. Any connection error message (e.g., "certificate signed by unknown authority", "bad certificate") or connection refused errors indicate a problem. Check:

    • Gateway IP/hostname reachability.
    • Firewall rules.
    • Correct certificates (ca_file, cert_file, key_file) used by the client.
    • Correct server_name_override matching the server certificate SAN/CN.
    • Correct mTLS configuration on the Gateway (including client CA validation).
    • Gateway controller logs (For e.g istio-ingressgateway pod logs in istio-system) for TLS errors.

  3. Test Failure Case:

    • Try running the client without the tls: section in its otlp/grpc exporter configuration. The connection should be rejected by the Gateway (likely a TLS handshake failure or connection reset).
    • Try commenting out the ca_file, cert_file, or key_file in the client config. The connection should fail.
    • If you have another certificate signed by a different CA, try using that as the client certificate. The Gateway should reject it during the mTLS handshake because it’s not signed by the trusted CA.

Caveats

In this walkthrough, certain steps were done in a specific way to make it easy to run and understand the configuration and scenario. These must be taken care of when configuring this setup during production:

  • Self-signed certificates should not be used in production. Also, CA certificates used for clients are also generally different than the one used for signing the server certificates.
  • The Kubernetes Gateway API is constantly evolving with more and more features coming into the spec. Many of these features are now in alpha/beta and will soon become generally available, for example, GRPCRoute. Refer to the latest Kubernetes documentation of the Gateway API.
  • The Kubernetes Gateway API aims to make the configuration portable and implementation agnostic as much as possible. Ideally this would be the case once the spec is matured and evolved. Till then, certain aspects of the configuration will have minor changes between implementations. For example, the way mTLS is configured in the Gateway now.
  • When running in production, you may want to use the infrastructure block of the spec to configure infrastructure-provider specific parameters, for example, DNS.
  • Productive setups would have end-to-end encrypted communication. For example, when using Istio, all components running within namespaces managed by Istio in a cluster can be forced to communicate with each other. This is achieved with PeerAuthentication. Similar concepts would be available for other service mesh implementations as well.
  • When working with routes and gateways in multiple namespaces, you may need references of resources such as backend services, and other configurations from other namespaces. For details, refer to Gateway ReferenceGrant.

Alternative Gateway Implementations

While we used Istio (gatewayClassName: istio), the core benefit of the Gateway API is its potential for standardization. If you were using Contour, NGINX Gateway Fabric, HAPROXY, etc., the Gateway and GRPCRoute resource definitions would ideally look very similar. The main differences might be:

  • The specific value for gatewayClassName.
  • Minor variations in how implementation-specific features or options are configured (e.g., the exact syntax for specifying the client configuration in the options structure).
  • How the underlying Gateway controller/proxy is deployed, managed, and exposed (e.g., the name and namespace of the LoadBalancer service).

Always consult the documentation for your specific chosen Gateway API implementation, particularly regarding mTLS configuration details.

Conclusion

The Kubernetes Gateway API offers a significant improvement over the legacy Ingress API, providing a more powerful, portable, standardized approach. It is more flexible, and role-oriented way to manage ingress traffic.

By combining the Gateway API with mutual TLS (mTLS), you can securely expose internal services like an OpenTelemetry Collector, ensuring robust client authentication and encrypted communication.

Last modified June 6, 2025: [blog]: Expose OTEL Collector with Gateway API and mTLS (#6655) (c6ef2f5e)
